Features
- IEEE-1588 PTP Grandmaster Clock
-
Holdover of ±1.5us over 4 hours
(Constant temperature and when
locked to GPS for 7 days) - ITU-T G.8272 PRTC
- Multi-Constellation (GPS, GLONASS, Beidou and Galileo and QZSS)
- Support Optical Fiber with Sync E
- Dedicated management port (1xRJ45)
- Network Management: SNMP, Web UI, CLI
- Industrial Temperature range (-40ºC to +85ºC)
Overview
Key Features
Overview

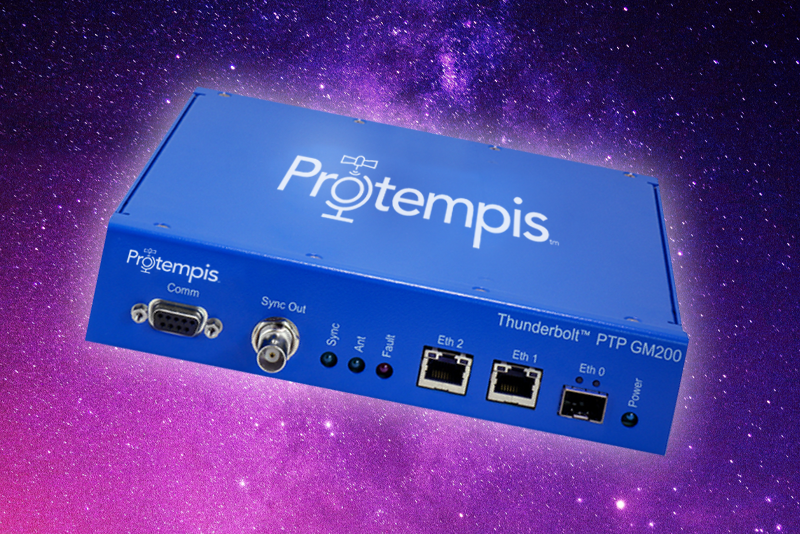

The Protempis Thunderbolt® PTP Grandmaster Clock is designed for
Public & Private Wireless, Data and Industrial networks that require timing
& phase synchronization. It provides Continuous availability of UTC traceable
time for phase synchronization, a must forLTE Advanced/5G networks and services.
The GM200 employs Protempis’ Industry-leading GNSS solution & Holdover
technology. It can tolerate harsh environmental conditions supporting both
indoor & outdoor deployments with an extended industrial operating temperature range.
The types of Applications range from power, utility, broadcast, financial,
oil & gas and enterprise.
Key Features
Key Features
- IEEE-1588 PTP Grandmaster Clock
o Multiple PTP Profiles (G.8265.1,
G.8275.1, G.8275.2, Telecom-2008
Profile, IEEE802.1AS, Enterprise
Profile, Broadcast Profile (SMPTE) - Multi-Constellation
(GPS, GLONASS, Beidou, Galileo and QZSS) - 15ns (1-sigma) time accuracy
relative to GNSS reference - Holdover of ±1.5us over 4 hours
(Constant temperature and when
locked to GPS for 7 days) - ITU-T G.8272 PRTC
- Inputs: GNSS, 1588-PTP, and SyncE
- Outputs: 1588-PTP, NTP, SyncE,
PPS, and 10MHz - ITU-T G.8272 PRTC
- 1G SFP (SyncE)
- Electrical and Optical (100/1000 Base-T,
1000 Base SX, 1000 Base LX) - Supports Optical Fiber with Sync E
- Dedicated management port (1xRJ45)
- Network Management: SNMP, Web UI, CLI
- VLAN support
- Rack Mountable
- IPv4 and IPv6
- Industrial Temperature –40°C to +85°C
